Deformation Mechanical Led Display With Moving LED Panel Intelligent Rotation Led Screen LED Video Wall Advertising Mall

Brand Name : CAIYI

Model Number : Moving Structure

Certification : CE, FCC, ROHS

Place of Origin : China

MOQ : 1set

Price : $999/set

Payment Terms : T/T, L/C, Western Union, Paypal

Supply Ability : 1000pieces per day

Delivery Time : 3-5days

Packaging Details : Simple box, waterproof cabinet, die-cast aluminum cabinet

Type : Other Machining Services

Material Capabilities : Aluminum, Steel Alloys

Micro Machining or Not : Micro Machining

Material : Aluminum Alloy

Application : Automotive

Warranty : 1year

Contact Now

Rotating screen instruction

Rotating screen is a machine, electricity, screen integrated rotation of multimedia motion display equipment, its main principle is through the motor drive screen (steel frame) in the rotating frame rotates 360 degrees or at any Angle.

Rotating motion and display content can be asynchronous, also can be controlled by software program, mechanical rotation and screen video, text content synchronization.

The rotating screen mainly includes the following parts: rotating base, rotating body (display frame, motor, reducer, driver,
rotating bearing, central shaft, conductive ring, mesh ring), controller, remote control, display screen, etc.

External equipment: other control software and other control equipment.

The significance of the rotating screen is to add motion to the multimedia equipment, so that the form and choice of multimedia become more colorful and richer.
Deformation Mechanical Led Display With Moving LED Panel Intelligent Rotation Led Screen LED Video Wall Advertising Mall

Technical features:

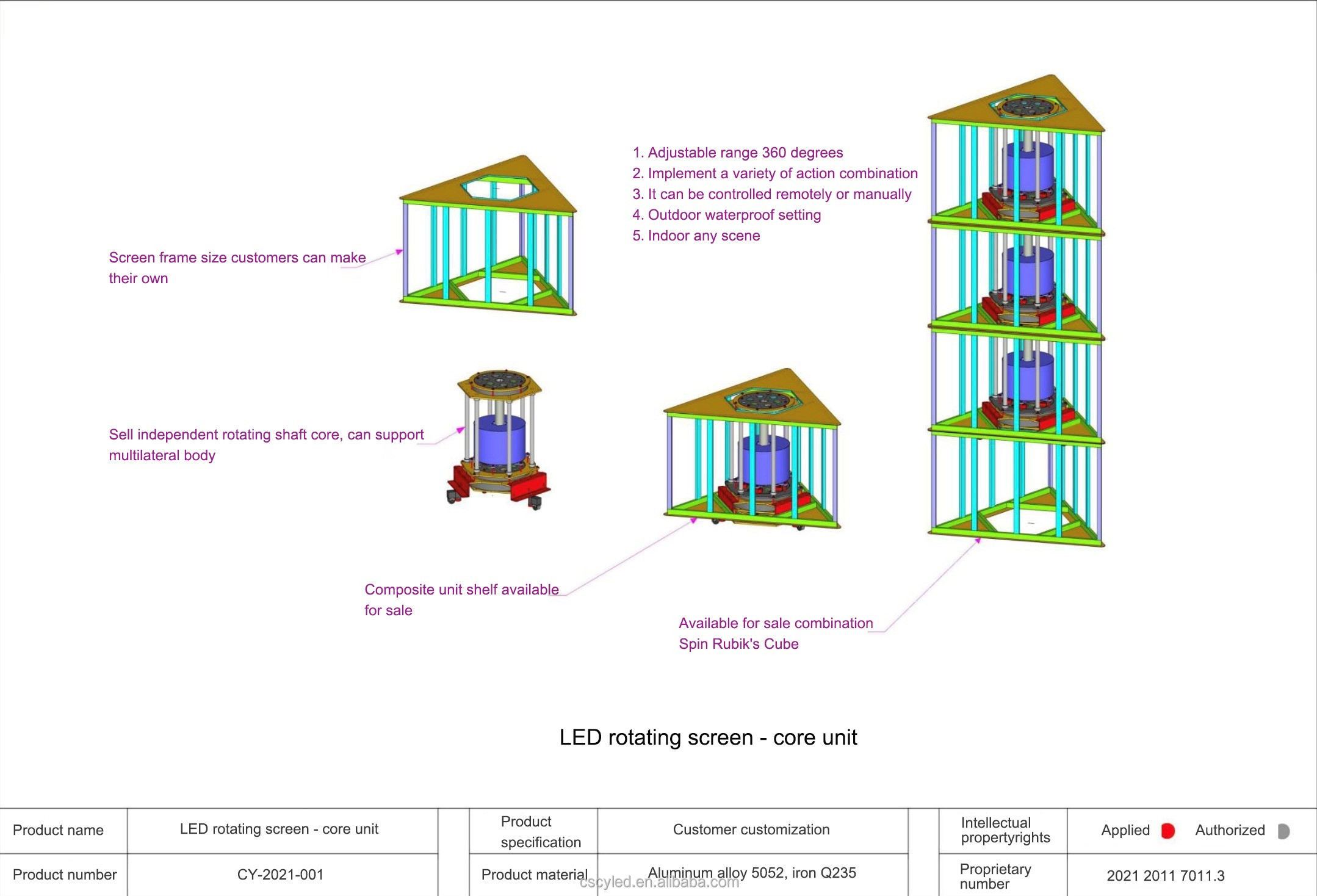

The rotating shaft core and the steel frame of the screen body can be manufactured and installed separately, or it can be
manufactured as a whole. Multiple rotating bodies can be linked, or monomer can move independently, and arbitrary polygon and circle can be customized.

Control features: power back to zero program, graphic and video synchronization program. Remote control, manual switch, external mobile phone, tablet and other central control.

Technical parameters

Rotary shaft core integration:
Rotating core
Name
Parameter number
Sheet metal, steel frame material
Steel pipe and plate: Q235, 304 stainless steel optional
Accuracy of mechanical installation
0.01-1.00
Stepper, servo motor + reducer
60-180 flange optional, power: 200w-7500w, suitable for reducer
Motor repeated positioning accuracy
0.01-0.03
Mechanical rotation positioning accuracy
0.01-0.1 degrees
Mechanical bearing accuracy
0.01-0.05
Conductive ring, mesh ring
Carbon Brush, Silver Plated, Gold Plated (custom on demand)

Control mode

* Remote control: advantages recommended custom remote control key function, control screen according to the setting program rotation, stop, power back to zero.
* Manual control, automatic cycle control, other wired control.
* Mobile phone control, computer control.
* Induction /AI control (custom development).

Software features
1. Support a variety of built-in programs and a variety of signals
2. Support background synchronous or asynchronous
3. Rotation at any Angle is supported
4. Support for third party control
Deformation Mechanical Led Display With Moving LED Panel Intelligent Rotation Led Screen LED Video Wall Advertising Mall
